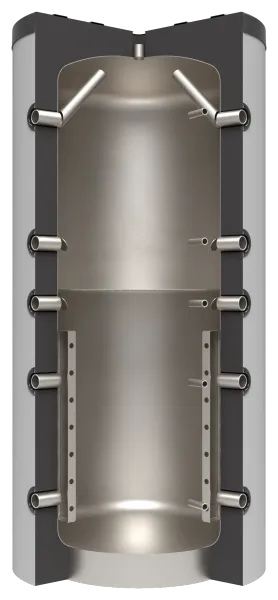

JPSL cutaway view, insulation in silver

JPSL

Buffer tank with stratification charging system

  • buffer tank
  • 6 sizes · 3 Insulation
Volume
500–2,000
operating pressure
3–4.5 bar
test pressure
4.5–7.8 bar
Submit a request Data Sheet (PDF)

Sizes and Availability

6 sizes · 3 Insulation

As of Oct 28, 2026
  • Efficiency Class
  • Heat loss in W
  • Click a cell to open the item; use the arrow keys to move through the table.
5 of 14 combinations available for immediate delivery
Size Tank without insulation Ecoline Vlies silver Ecoline Vlies white Neodul® silver
500 500, Tanks without insulation: Diameter 650 mm Weight 102 kg Item No. 156500 In stock, limited quantity 500, Ecoline Vlies silver: Efficiency Class C 106 W Item No. 840427 Available immediately, limited stock 500, Neodul® silver: Efficiency Class B 72 W Item No. 840441 Available immediately, limited stock
600 600, Tanks without insulation: Diameter 700 mm Weight 128 kg Item No. 156600 Delivery time: approx. 4–6 weeks 600, Ecoline Vlies silver: Efficiency Class C 118 W Item No. 840443 Delivery time: approx. 4–6 weeks 600, Neodul® silver: Efficiency Class B 68 W Item No. 840455 Delivery time: approx. 4–6 weeks
825 825, Tanks without insulation: Diameter 790 mm Weight 111 kg Item No. 156825 In stock, limited quantity 825, Ecoline Vlies silver: Efficiency Class C 127 W Item No. 840094 Available immediately, limited stock 825, Ecoline Vlies white: Efficiency Class C 127 W Item No. 840095 Available immediately, limited stock 825, Neodul® silver: Efficiency Class B 83 W Item No. 840362 Available immediately, limited stock
1000 1000, Tanks without insulation: Diameter 790 mm Weight 129 kg Item No. 1561000 Delivery time: approx. 4–6 weeks 1000, Ecoline Vlies silver: Efficiency Class C 141 W Item No. 840088 Delivery time: approx. 4–6 weeks 1000, Ecoline Vlies white: Efficiency Class C 141 W Item No. 840089 Delivery time: approx. 4–6 weeks 1000, Neodul® silver: Efficiency Class B 98 W Item No. 840363 Delivery time: approx. 4–6 weeks
1500 1500, Tanks without insulation: Diameter 1,000 mm Weight 204 kg Item No. 1561500 Delivery time: approx. 4–6 weeks 1500, Ecoline Vlies silver: Efficiency Class C 142 W Item No. 840091 Delivery time: approx. 4–6 weeks Not included in the price list 1500, Ecoline Vlies white: Efficiency Class C 142 W Item No. 840092 Delivery time: approx. 4–6 weeks Not included in the price list 1500, Neodul® silver: Efficiency Class B 122 W Item No. 840364 Delivery time: approx. 4–6 weeks Not included in the price list
2000 2000, Tanks without insulation: Diameter 1,100 mm Weight 204 kg Item No. 1562000 Delivery time: approx. 4–6 weeks 2000, Ecoline Vlies silver: Efficiency Class C 166 W Item No. 840438 Delivery time: approx. 4–6 weeks Not included in the price list

Size 500

Size 600

Size 825

Size 1000

Size 1500

Size 2000

Description

The JPSL buffer tank features a high-performance stratification charging system and is suitable for all hot water central heating systems, whether they use solid-fuel or oil-fired boilers, heat pumps, solar systems, or gas or electric instantaneous water heaters.
Equipped with a sensor terminal strip for variable positioning of the sensors.

Custom designs in other sizes available upon request.

Features

  • Insulation options (to be ordered separately): We recommend this type of tank only with certain reservations when used in conjunction with a heat pump! This is because the “low” flow temperature of the heat pump (usually 50–55°C) can lead to limitations in hot water comfort. We recommend our EHSWP tank, which was developed specifically for heat pumps!
  • Includes a baffle plate, diffusers, and mitered pipes for optimal stratification
  • Highest build quality
  • High-quality S235JR steel in accordance with EN 10025
  • Operating pressure: 3 bar
  • Test pressure: 4.5 bar
  • Maximum operating temperature: 95°C
  • Option to install a contact sensor
  • 5-year warranty
