buffer tank
JPSL 500 · without insulation
JPSL Type 500 · Buffer tanks with stratification charging system
Item No. 156500
- nominal capacity
- 480
- Ø without insulation
- 650 mm
- Height
- 1,630 mm
- Weight
- 102 kg
As of Oct 28, 2026
EAN 4250659510887
Dimensions and weights
- Ø without insulation
- 650 mm
- Height
- 1,630 mm
- tilt height
- 1,665 mm
- Weight
- 102 kg
Connections
Letters as shown in the illustration
| Letter | connection | Height | Size | Thread | Angle |
|---|---|---|---|---|---|
| 1 | Connection 1 Front socket | 220 mm | 1½" | Female thread | 17.63° |
| Connection 1 Rear socket | 220 mm | 1½" | Female thread | 117.63° | |
| 2 | sensor sleeve | 220 mm | ½" | Female thread | 91.19° |
| 4 | Connection 2 Front socket | 620 mm | 1½" | Female thread | 17.63° |
| Connection 2 Rear socket | 620 mm | 1½" | Female thread | 117.63° | |
| 5 | sensor sleeve | 620 mm | ½" | Female thread | 91.19° |
| 7 | Connection 3 Front socket | 840 mm | 1½" | Female thread | 17.63° |
| Connection 3 Rear socket | 840 mm | 1½" | Female thread | 117.63° | |
| 8 | sensor sleeve | 840 mm | ½" | Female thread | 91.19° |
| 10 | Connection 4 Front socket | 1,220 mm | 1½" | Female thread | 17.63° |
| Connection 4 Rear socket | 1,220 mm | 1½" | Female thread | 117.63° | |
| 11 | sensor sleeve | 1,220 mm | ½" | Female thread | 91.19° |
| 13 | Connection 5 Front socket | 1,390 mm | 1½" | Female thread | 17.63° |
| Connection 5 Rear socket | 1,390 mm | 1½" | Female thread | 117.63° | |
| 14 | sensor sleeve | 1,390 mm | ½" | Female thread | 91.19° |
| 16 | Top connection Top connection (L=50) | 1,630 mm | 1½" | Female thread | 0° |
Technical Specifications
Volume
- nominal capacity
- 480
- Operating pressure of storage tanks
- 4.5 bar
- Test pressure of the storage tank
- 7.8 bar
specification text
ENERGY BUFFER TANK with stratification charging system, resulting in significantly improved stratification behavior
Buffer tank for all hot water central heating systems. Suitable for: solid fuel and oil-fired boilers, heat pumps, solar systems, and gas or electric instantaneous water heaters. Manufactured from high-quality S235JR steel in accordance with EN 10025 and EC Directive 97/23/EC; exterior with anti-corrosion coating, interior left unfinished. Includes a sensor terminal strip for variable positioning of the sensors.
- Nominal capacity
- 480 L
- Operating pressure of storage tanks
- 4.5 bar
- Test pressure of the storage tank
- 7.8 bar
- Minimum pressure in the storage tank
- +0 bar
- Max. operating temperature
- 95°C
- Min. temperature
- 20 °C
Features
- 1 x 1½" socket (air vent)
- 5 x 1 ½ " socket (system connection on the left)
- 5 x 1 ½ " socket (system connection on the right)
- 2 x deflector plates
- 2 x mitered pipe DN 40
- 2 x return layer ducts
- 5 x ½" sockets (standard sockets)
- 1 x perforated sheet, 50%
The system connection ports are spaced 100° apart. Dimensions without insulation: 650 x 1630 (Ø x H) mm
- Manufacturer
- Juratherm GmbH
- Match Code
- JPSL 500
- Weight
- ~102 kg
- Tilt height
- 1665 mm
- EAN13
- 4250659510887
Product video

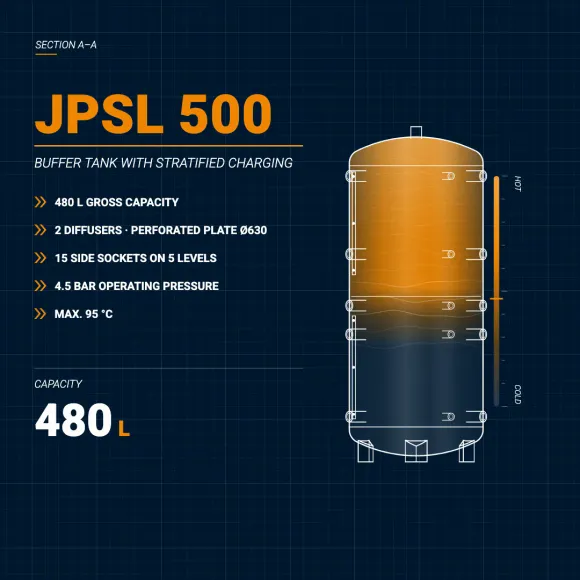

JPSL 500 in motion
