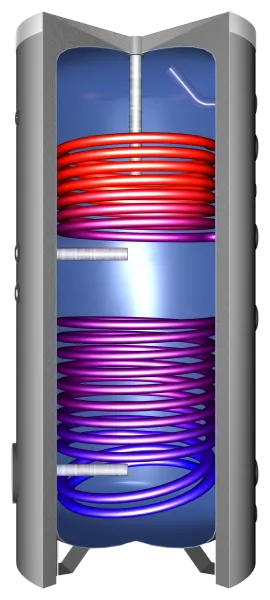

HSRS cutaway view, insulation in silver

HSRS

For oil, gas, solid fuel, and heat pumps

  • Enameled Potable Water Tanks
  • 2 sizes · 2 Insulation
Volume
750–1,000
operating pressure
10 bar

Sizes and Availability

2 sizes · 2 Insulation

  • Efficiency Class
  • Heat loss in W
  • Click a cell to open the item; use the arrow keys to move through the table.

Description

The HSRS domestic hot water storage tank offers all the advantages of the HRSS domestic hot water storage tank but features two coil heat exchangers, making it ideally suited for bivalent heat supply systems, such as solar systems.

Features

  • Insulation option (must be ordered separately): Ecoline fleece insulation (Made in Germany), color: silver (standard) available from stock; white available upon request (2–3 business days)
  • With two smooth-tube heat exchangers (1-inch tubes)
  • Highest build quality
  • High-quality S275JR steel in accordance with EN 10025, manufactured in accordance with EN 12897:2006
  • Enameled in accordance with DIN 4753
  • Operating pressure: 10 bar
  • Test pressure: 16 bar
  • Maximum operating temperature: 95°C
  • Up to a 5-year warranty (with proof of maintenance)
