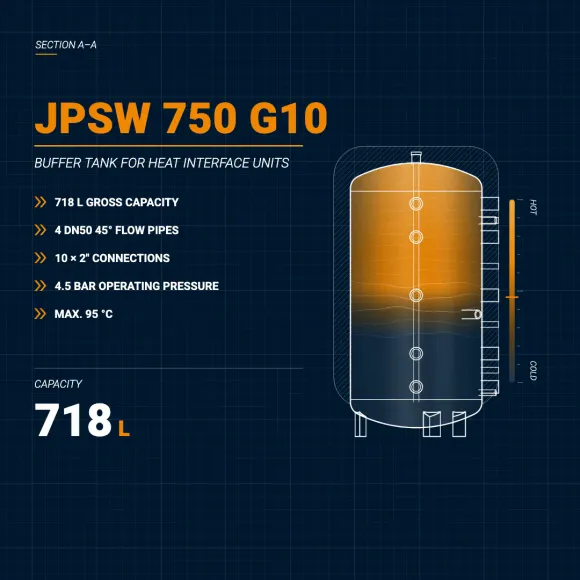

JPSW 750 · G10 · without insulation

JPSW ENERGY BUFFER TANK

Buffer tank for all hot water central heating systems. Suitable for: solid-fuel and oil-fired boilers, heat pumps, solar systems, and gas or electric instantaneous water heaters. Manufactured from high-quality S235JR steel in accordance with EN 10025 and EC Directive 97/23/EC. Exterior anti-corrosion coating; interior left unfinished. Includes a sensor core tube for variable positioning of the sensors within the tank’s fluid.

Nominal capacity

718 L

Max. operating pressure of the storage tank

4.5 bar

Test pressure of the storage tank

7.8 bar

Minimum pressure in the storage tank

+0 bar

Max. operating temperature

95°C

Min. temperature

20 °C

Features

• 5x 2" socket (system connection on the left)
• 5x 2" socket (system connection on the right)
• System connections at the top and bottom
• Equipped with a miter pipe for
• Klöpper bottom oriented toward the
• Flow stabilization and
• Volume utilization
• 1 x 1½" socket (air vent)
• 4 x ½" socket (thermometer)
• 1 x " socket (drain)
• 1 x 1" socket (for 2.5-conductor system)

The system connection ports are arranged at 90° intervals from one another. Dimensions without insulation: 790 x 1690 (Ø x H) mm

Manufacturer

Juratherm GmbH

Match Code

JPSW 750 G10

Weight

~92 kg

Tilt height

1727 mm

EAN13

4250659514151
