buffer tank
JPSLRR 1500 · Ecoline Vlies white
Efficiency Class C
JPSLRR Type 1500 V2, assembled, white · Includes 130 mm fleece insulation
Item No. 840110
- heat loss
- 142 W
- Standby loss
- 3.4 kWh/24 h
- ErP Volume
- 1,501
- Weight
- 294 kg
As of Oct 28, 2026
EAN 4250659505326
Dimensions and weights
- Ø with insulation
- 1,200 mm
- Ø without insulation
- 1,000 mm
- Height including insulation
- 2,200 mm
- Height without insulation
- 2,150 mm
- tilt height
- 2,195 mm
- Weight
- 294 kg
- Insulation thickness
- 130 mm
Connections
No connections have been specified for this tank yet.
Technical Specifications
Volume
- nominal capacity
- 1455
heat exchanger
- Heat exchanger Bottom Surface
- 3.6 m²
- Heat exchanger Top Surface
- 2.6 m²
- WT Content at the bottom
- 25.2
- Heat exchanger Top Capacity
- 18.2
- Heat exchanger Pressure drop at the bottom
- 318 mbar
- Heat exchanger Pressure Loss (Top)
- 230 mbar
- Operating pressure of storage tanks
- 3 bar
- Test pressure of the storage tank
- 4.5 bar
- Max. Pressure heat exchanger
- 6 bar
insulation
- Insulation thickness of the jacket (assembled)
- 130 mm
- Insulation thickness of the jacket (raw)
- 145 mm
- Insulation thickness of the lid
- 150 mm
- Insulation color
- white
- Lambda
- 0.0388 W/mK
- Bulk density
- 2340 g/m²
- Fire rating
- B2 according to DIN 4102
Energy (ErP)
- ErP Class
- C
- ErP - Heat loss (W)
- 142 W
- ErP – Heat Loss (kWh)
- 3.4 kWh
- ErP - Contents
- 1501
specification text

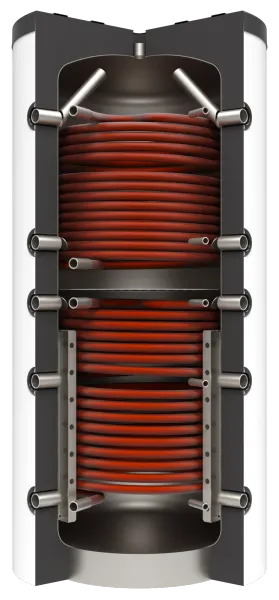

ENERGY BUFFER TANK with 2 heat exchangers, including insulation with a stratification charging system, resulting in significantly improved stratification behavior
Buffer tank for all hot water central heating systems. Suitable for: solid fuel and oil-fired boilers, heat pumps, solar systems, and gas or electric instantaneous water heaters. Manufactured from high-quality S235JR steel in accordance with EN 10025 and EC Directive 97/23/EC; exterior with anti-corrosion coating, interior left unfinished. Includes a sensor terminal strip for variable positioning of the sensors.
- Nominal capacity
- 1455 L
- Operating pressure of storage tanks
- 3 bar
- Test pressure of the storage tank
- 4.5 bar
- Minimum pressure in the storage tank
- +0 bar
- Max. operating temperature
- 95°C
- Min. temperature
- 20 °C
- Heat exchanger Top Surface
- 2.6 m²
- Heat exchanger Top Capacity
- 18.2 L
- Heat exchanger Pressure Loss (Top)
- 230 mbar
- Heat exchanger Bottom Surface
- 3.6 m²
- WT Content at the bottom
- 25.2 L
- Heat exchanger Pressure drop at the bottom
- 318 mbar
- Max. Pressure heat exchanger
- 6 bar
Features
- 1 x 1½" socket (air vent)
- 5 x 2" socket (system connection on the left)
- 5 x 2" sockets (system connection on the right)
- 2 x deflector plates
- 2 x mitered pipe DN 50
- 2 x return layer ducts
- 5 x ½" sockets (standard sockets)
- 1 x perforated sheet, 50%
- 4 x 1" Socket (heat exchanger)
The system connection ports are spaced 100° apart.
Insulation Details
- Material
- Polyester fiber nonwoven
- Insulation color
- White
- Insulation thickness of the jacket (assembled)
- 130 mm
- Lambda
- 0.0388 W/mK
- Fire rating
- B2 according to DIN 4102
- Temperature Resistance
- 110 °C
- Bulk density
- 2340 g/m²
- Includes 50 mm floor insulation
- ErP Class
- C
- ErP - Heat loss (W)
- 142 W
Dimensions with insulation
- 1200 x 2200 (Ø x H) mm
- Manufacturer
- Juratherm GmbH
- Match Code
- JPSLRR 1500 V2 assembled, white
Assembly consisting of
- JPSLRR Type 1500 V2
- Nonwoven insulation, Type 1500
- Weight
- ~294 kg
- Tilt height
- 2195 mm
- EAN13
- 4250659505326
Composition
- 1581500 JPSLRR Type 1500 V2 tank · Buffer tank with stratification charging system and 2 heat exchangers.
- 99715001 Nonwoven insulation, Type 1500 insulation · JPSM/R/RR + JPSL/R/RR 130 mm white

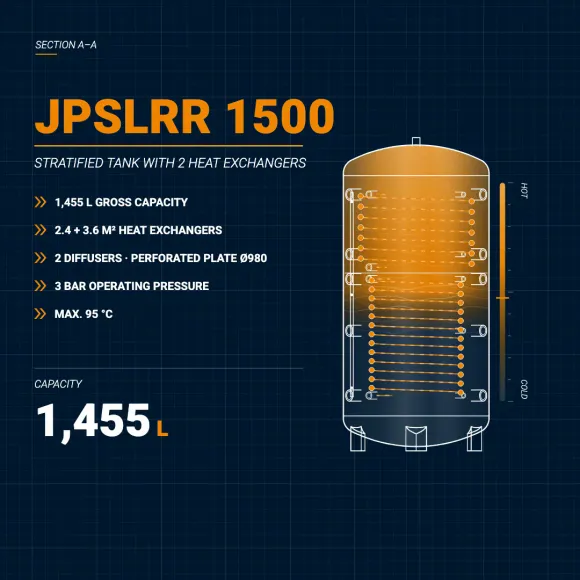

Product video
JPSLRR 1500 in motion
Downloads
Energy label required only for tanks up to 500 liters
