JHLS

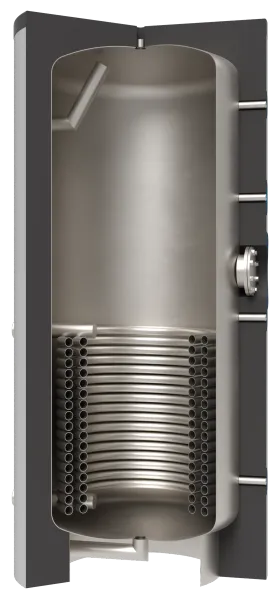

Stainless steel storage tank with 1 double-coiled heat exchanger
- Volume
- 160–1,000
- operating pressure
- 10 bar
Sizes and Availability
7 variants
| Size | Implementation | Item No. | Efficiency Class | heat loss | Availability |
|---|---|---|---|---|---|
| Size 160 | silver | 506160 | B | 50 W | Delivery time: approx. 11–13 weeks |
| Size 200 | silver | 506200 | B | 58 W | Delivery time: approx. 11–13 weeks |
| Size 300 | silver | 506300 | B | 66 W | Delivery time: approx. 11–13 weeks |
| Size 400 | silver | 506400 | C | 85 W | Delivery time: approx. 11–13 weeks |
| Size 500 | silver | 506500 | C | 98 W | Delivery time: approx. 11–13 weeks |
| Size 750 | silver | 506750 | C | 120 W | Delivery time: approx. 11–13 weeks |
| Size 1000 | silver | 5061000 | C | 140 W | Delivery time: approx. 11–13 weeks |
Description
The JHLS stainless steel domestic water tank can be used as a supplementary storage tank for oil, gas, solid fuel, heat pumps, and similar systems.
Features
- Highest build quality
- With a double-wound smooth-tube heat exchanger (2 × 1" tubes)
- Stainless steel V4A 1.4571
- Manufactured in accordance with DIN 4753
- Tank fully immersion-pickled and passivated
- Operating pressure: 10 bar
- Test pressure: 13 bar
- Maximum operating temperature: 95°C
- 5-year warranty
