EMH

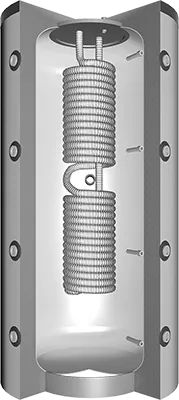

Modular Hygienic Combi Tank, Type 1000
- Volume
- 600–1,000
No longer available All Products
Note: Heat pump. We recommend this type of tank only with certain reservations when used in conjunction with a heat pump! This is because the “low” flow temperature of the heat pump (usually 50–55°C) can lead to limitations in hot water comfort. We recommend our EHSWP tank, which was developed specifically for heat pumps! About EHSWP
Description
The EMH Modular Hygienic Stratified Combination Storage Tank is suitable for heating water storage and domestic hot water heating, wood-fired heating systems, combined heat and power (CHP) units, and conventional heat generators.
Because the water volume is limited to 30–50 liters and the “flow-through principle” is used, no precautions against Legionella risk are required in accordance with DVGW Worksheet W551.
Features
- Insulation options (to be ordered separately): Ecoline fleece insulation (Made in Germany), color: silver (standard) available from stock; white available upon request (2–3 business days)
- Highest build quality
- High-quality S235JR steel in accordance with EN 10025
- Operating pressure: 3 bar
- Test pressure: 4.5 bar
- Operating pressure of stainless steel corrugated pipe: 6 bar
- Maximum operating temperature: 95°C
- Option to install a contact sensor
- 5-year warranty
