EHS 2000 · without insulation

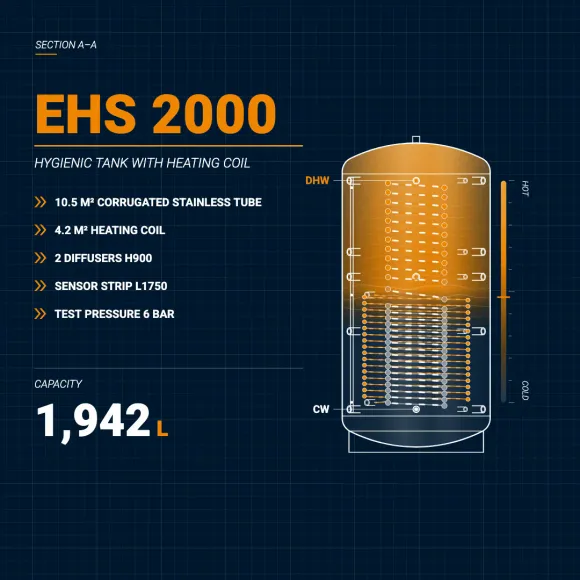

Hygienic stratified combination storage tank with 1 heat exchanger and a stratification charging system, resulting in significantly improved stratification behavior

Buffer tank for all hot water central heating systems. Suitable for: solid-fuel and oil-fired boilers, solar systems, and gas or electric instantaneous water heaters. Manufactured from high-quality S235JR steel in accordance with EN 10025 and Directive 97/23/EC. Exterior with rust protection; interior untreated. Hot water flows through a V4A 1.4404 stainless steel corrugated pipe, including a sensor terminal strip for variable sensor positioning.

Nominal capacity

1942 L

Max. operating pressure of the storage tank

3 bar

Test pressure of the storage tank

4.5 bar

Minimum pressure in the storage tank

+0 bar

Max. operating temperature

95°C

Min. temperature

20 °C

Stainless steel corrugated pipe surface

10.5 m²

Max. Pressure EWW

6 bar

Heat exchanger Bottom Surface

4.2 m²

Max. Pressure heat exchanger

6 bar

Features

• 5 x 1 ½ " socket (system connection on the left)
• 5 x 1 ½ " socket (system connection on the right)
• (System connection incl. layer baffle)
• 1 x 1½" socket (air vent)
• 5 x ½" sockets (standard sockets)
• 1 x 1 ½ " socket (electric heater)
• 2 x 1 ¼" socket (hot and cold water)
• 2 x 1" Socket (heat exchanger)
• 2 x return layer ducts

The system connection ports are spaced 100° apart. Dimensions without insulation: 1100 x 2350 (Ø x H) mm

Manufacturer

Juratherm GmbH

Match Code

EHS 2000

Weight

~442 kg

Tilt height

2440 mm

EAN13

4250659512775
